Product Name:

Aluminum 3w Flush Mounted Led Down Light Water Proof DC10-30V

Product Features

Integrated pressed molding aluminum structure, leakage prevention, and generous concise appearance.
Ultra Slim Design - Extremely slim and lightweight down lights nicely suits for narrow places like RVs, boat, van conversion, camper trailer, yachts, cabinet, closet, etc interior lighting.

Dimmable Integrated LEDs - Works with AC/DC24V，AC/DC12V, PWM LED dimmer switch, smoothly from very dim to highest brightness for comfortable lighting. High CRI (>85) Low Power Draw, High Bright - High efficiency LED bulbs pull very minimal amps while providing bright lighting, greatly save auto batteries.

Each light have 200 lumen output with Evenly Distributed Light Full Aluminum Constructed - Pure aluminum housing with excellent heat radiating, ensures light performance and extend LED lifespan. Solid stainless clips are durable and corrosion resistance. Flush Mount, Clean Looking - Sleek chrome finish, recessed mount with solid spring clips, easy to install or removable, lights sit flush with the ceiling after placing, very clean and crisp looking.

Product Specification



Model Number	Power	Emitting color	Input Voltage
DW03W	3W	CW/NW/WW/Red/Green/Blue	DC12V/DC24V
	3W	RGB/RGBW	DC12V/DC24V
DW03W	3W	CW/NW/WW/Red/Green/Blue	AC24V
	3W	RGB/RGBW	AC24V
Dimmable, 110V/220V are available, Welcome OEM and ODM
Beam Angle		120°
Power Efficiency		>86%
Color Rendering Index(CRI)		Ra>80
Frequency Range		47-63Hz
Power Factor(PF)		≥0.95
Total Harmonic Distortion(THD)		<15%
Working Lifetime		>50,000Hrs
IP Rating		IP66
Body Material		Aluminum
Product Size		Φ68, Opening hole size:Φ55mm
Net Weight		0.5KGS

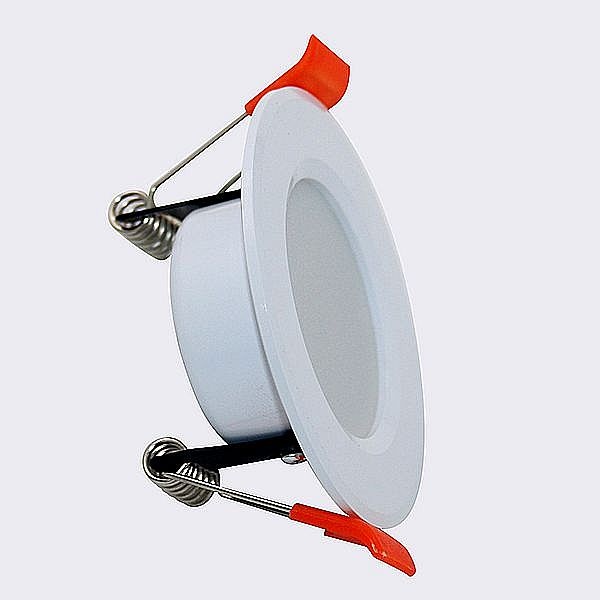

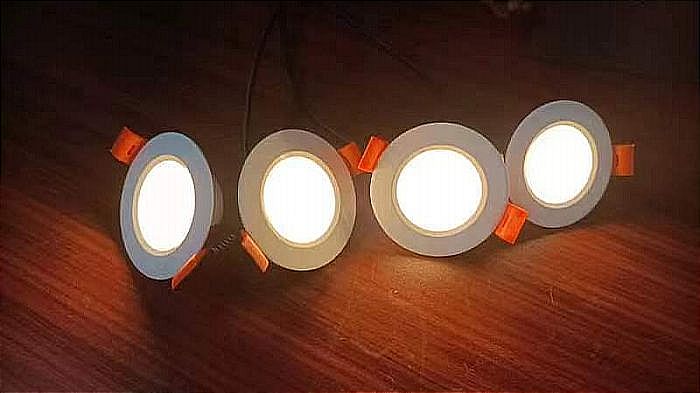

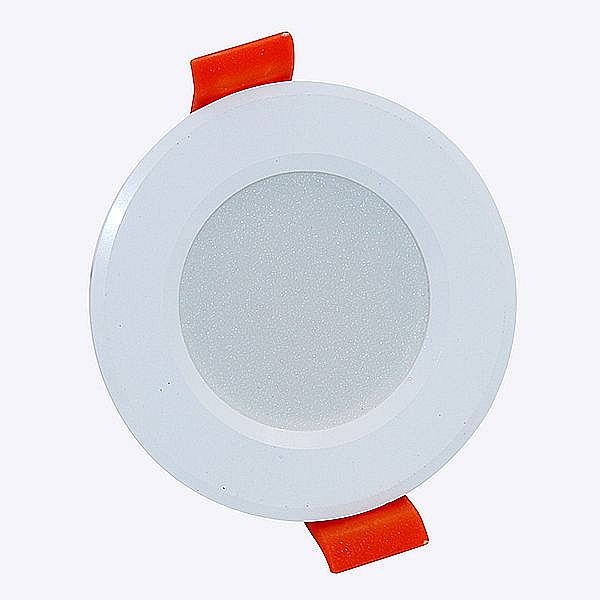

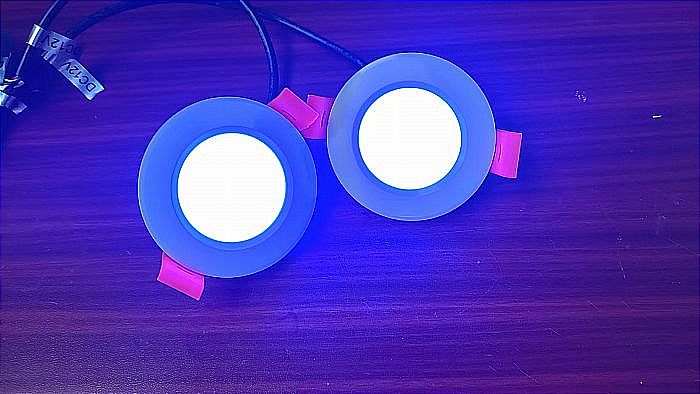

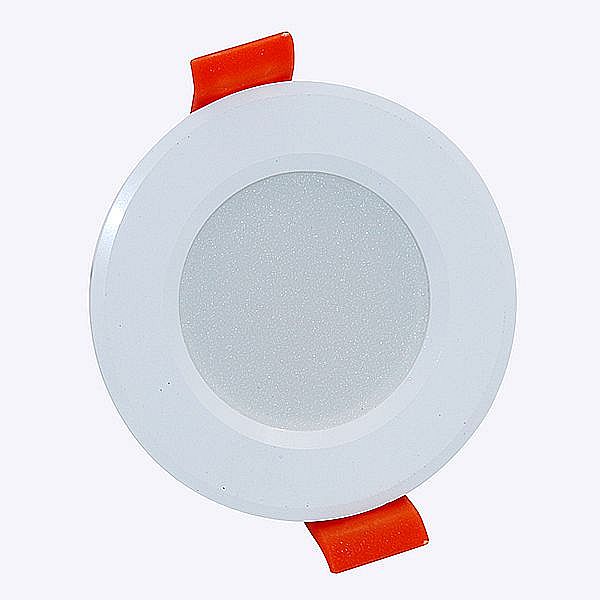

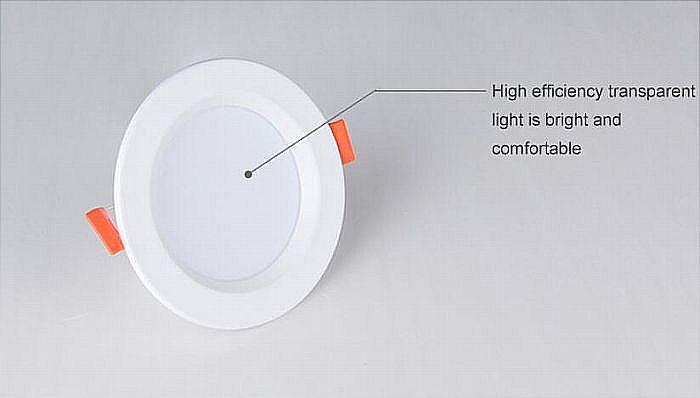

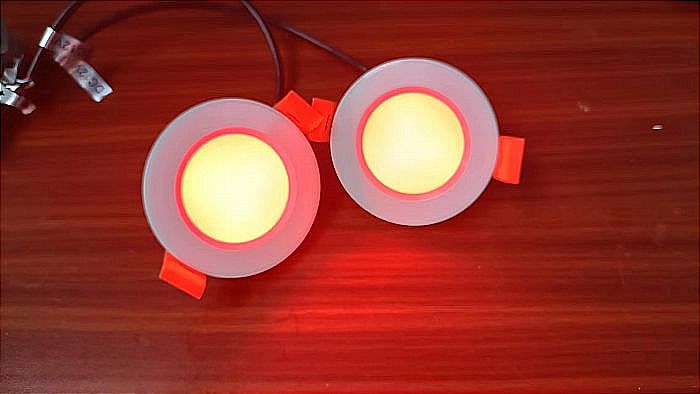

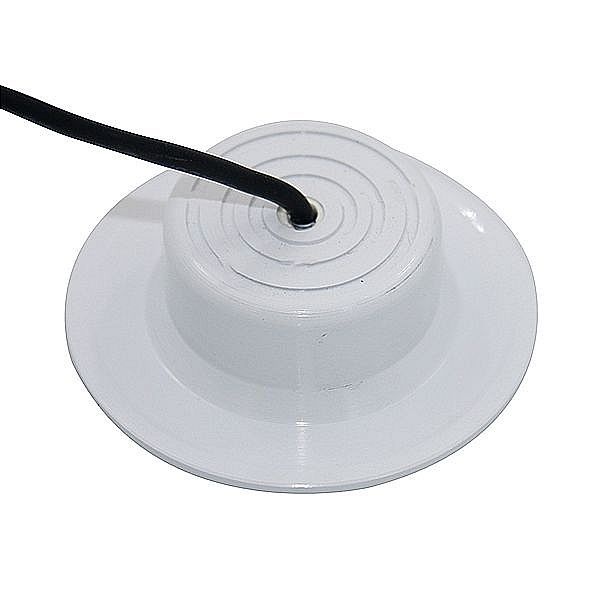

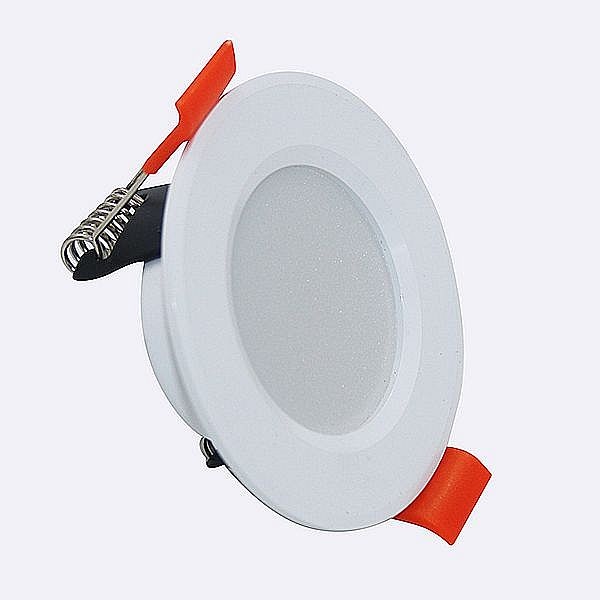

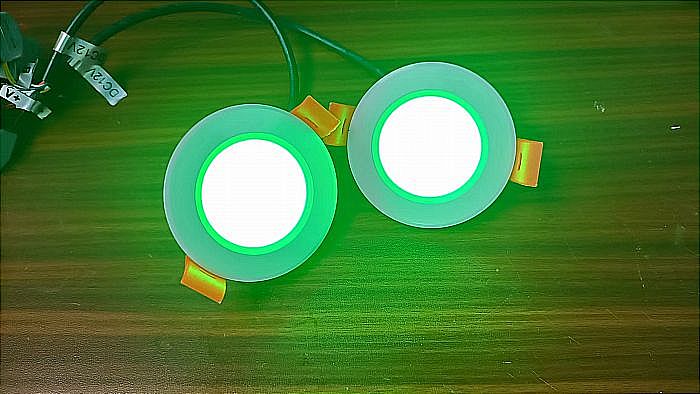

Product Picture

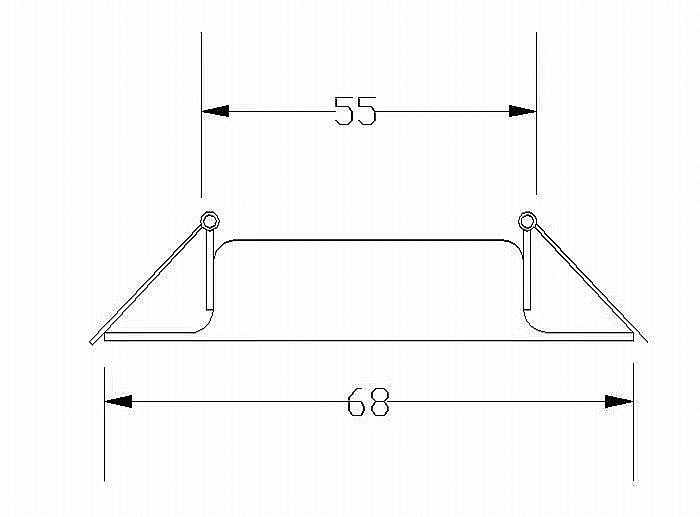

Product Size (in mm)







Product Application
