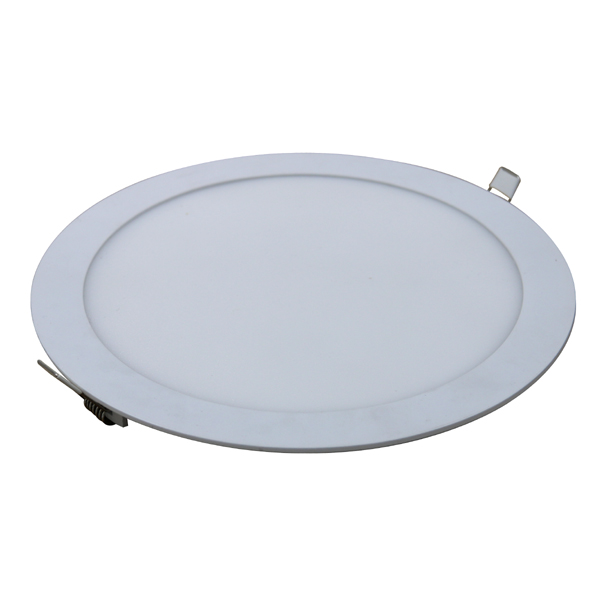

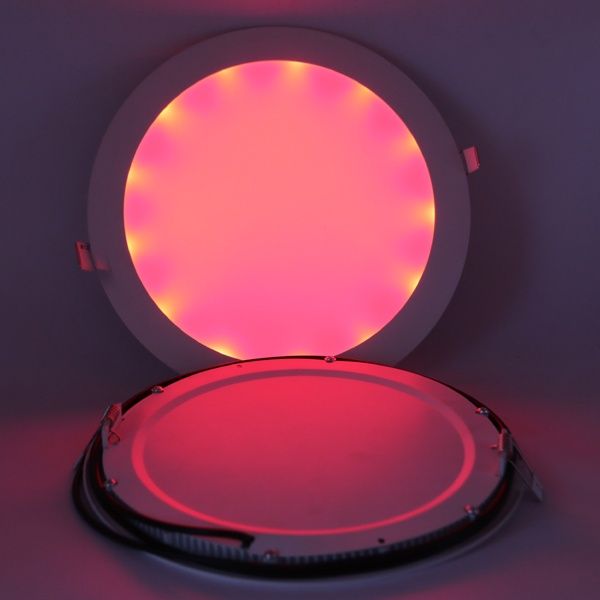

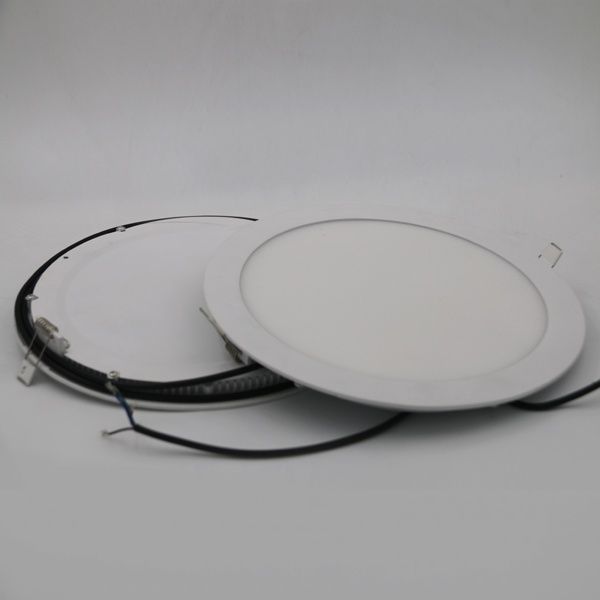

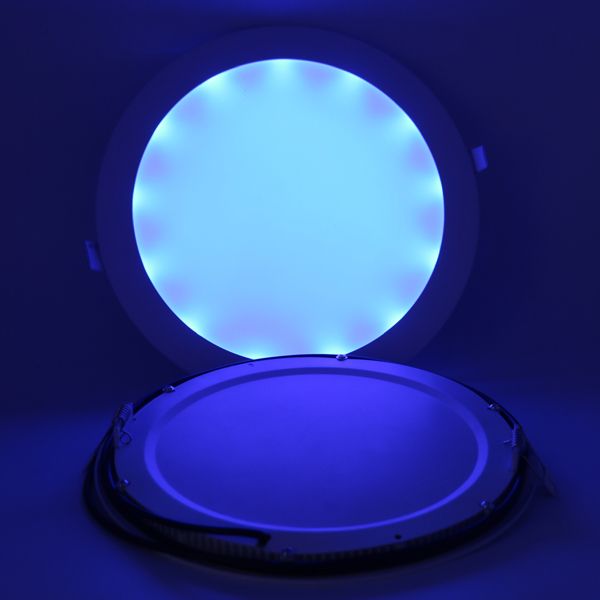

20W RGB LED SLIM PANEL LIGHT
- Product No.：YF-PNL01-240
MODEL NO.: YF-PNL01-240
| Specifications: | |
| LED Type | Epistar SMD2835 |
| Power Consumption | 20W |
| Other Optional power | 6W 9W 12W 15W 18W 24W |
| Color Temperature | 2800-7000K |
| Luminous Flux | 1800-2000lm |
| Color | WH/WW/W/RED/BLUE/RGB |
| Dimension | ¢240x12mm |
| Cut hole | ¢220 |
| Beam Angle | >120degree |
| CRI | >80 |
| Power Factor | >0.95 |
| Input Voltage | AC85v~265v, DC12V |
| Frequency Range | 50~60Hz |
| Material of Body | aluminum alloy frame and PMMA cover |
| IP rating | IP44 |
| Operating Temperature | -20~65 degrees Celsius |
| Dimmable Feature | Optional |
| Life Span | 50,000hours |
| Warranty | 3years |
