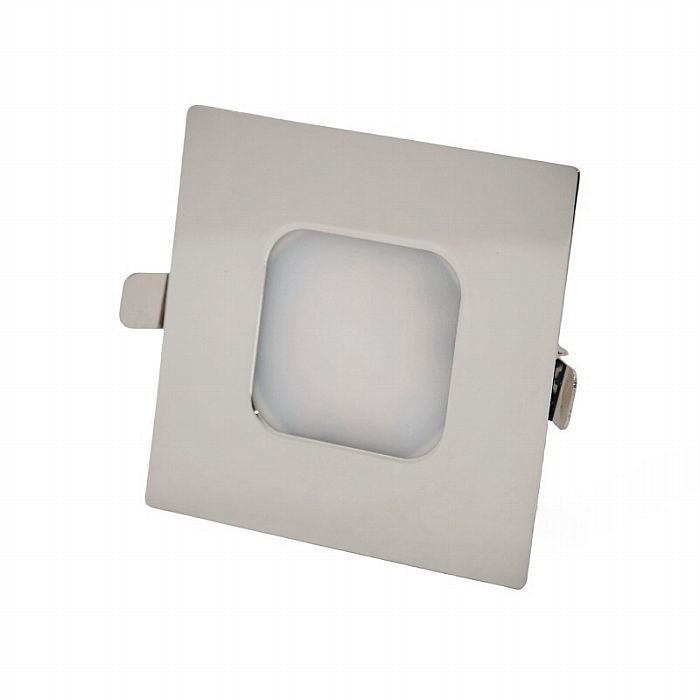

Outdoor use Square Led recessed Downlights

Outdoor use Square Led recessed Downlights

Product No.：SDL75A-3W
Online Inquiry

Product Name:

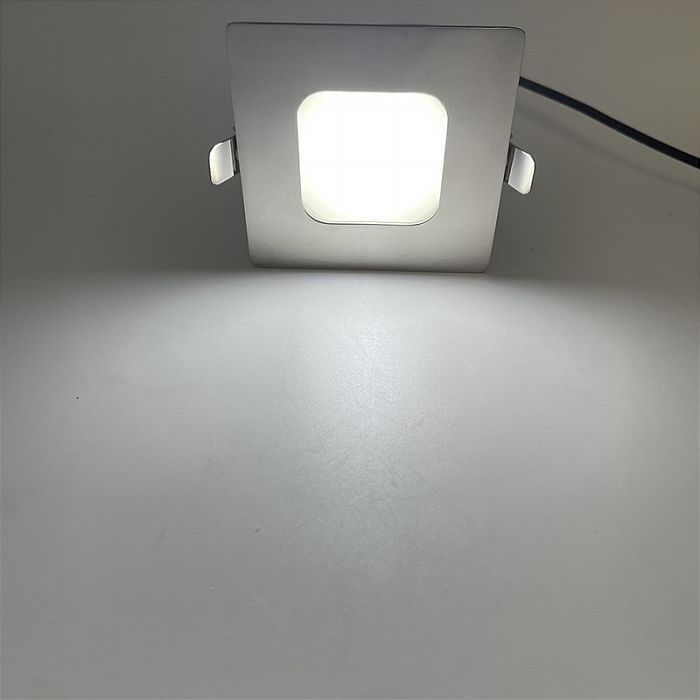

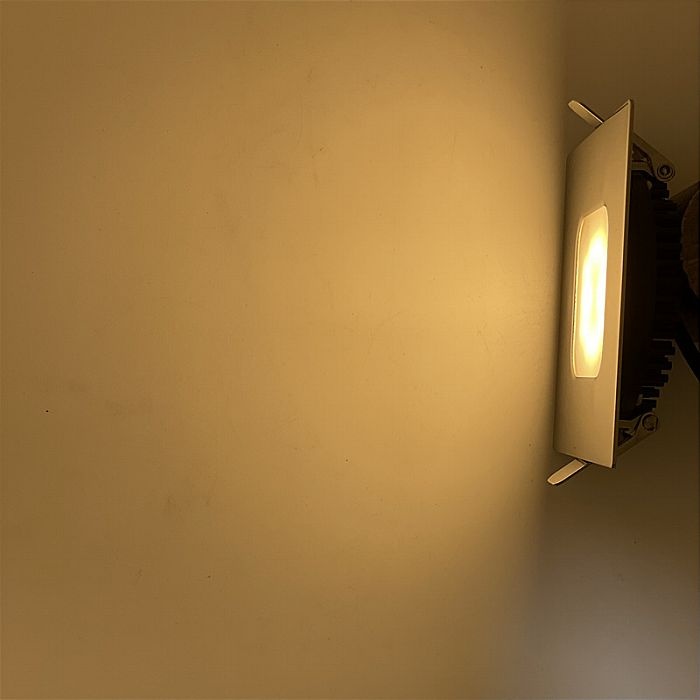

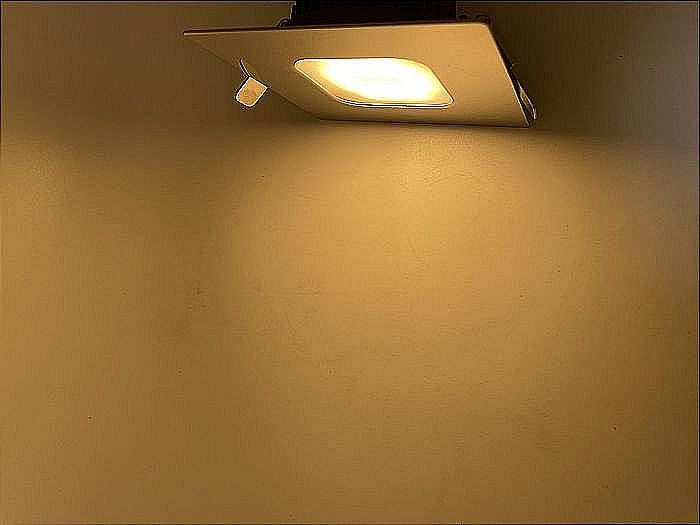

3W 6W 316L Stainless Steel Outdoor use Square Led recessed Downlights

Product Features

1.Corrosion resistant 316L stainless steel bezel available in black, golden, white, high polished or brushed

2. Reverse polarity protected

3. 10-30VDC Constant current electronics design ensures consistent light output

4. IP67 rated for interior and exterior installations

5. HIGH QUALITY HEATSINK Heat dissipation through the high quality heatsink increase the life of the LED

6. Anty Rust Stainless Steel Spring

7. Even light across fixture with no shadowing or visible LEDs

8. Available in 3000K, 5000K, bi-color, tri-color, RGB and RGBW

9. Sleek contemporary design for a high-end look

10, RGB, RGBW color lamp can control by external controller, also can make lamp comes with 2-core cable, then just simply control color by a ON/OFF simple switch , dual color can use switch for dimming. Welcome to contact us to get details information.


Function of Switch Control:

Every lamp comes with simple 2-core cable,

Single color: switch ON/OFF and dimming,

Dual color: switch ON/OFF, switching colors and dimming,

RGB color: switch ON/OFF, switching 7 different colors + RGB fade mode,

RGBW color: switch ON/OFF, switching 7 different colors +RGB fade mode+white color(2700-7000K for optional).

Advantages of Switch Control:

No Controller Required works with standard two position switch,

Easy to install, no complicated wiring, and better to protect circuit,

Save installation time and costs,

Wide voltage 10-30VDC apply to different general boats and yachts,

Constant current driver runs each color, make LED brightness is more stable,

Product Specification

Power (W)	Emitting color	Chips Brand	Working Current	Input voltage	Wavelength (nm)	Total Lumens (LM）	Beam Angle
3	White	Osram SMD	12VDC @ 0.2A	10-30VDC	3000-6000K	200-250	120°
	Red				630	120-150
	Green				520	230-250
	Blue				460	50-60
	RGB			DC12V/DC24V	--	150-180
	RGBW			DC12V/DC24V	--	200-210
6	White	Osram SMD	12VDC @ 0.4A	10-30VDC	3000-6000K	400-450	120°
	Red				630	200-210
	Green				520	400-450
	Blue				460	90-100
	RGB			DC12V/DC24V	--	300-350
	RGBW			DC12V/DC24V	--	400-420
