2.5 Inch Led Recessed Down Light IP67
- Product No.:NS65-3W
Product Name:
3W2.5 Inch Led Recessed Down Light IP67
Product Features
1.Corrosion resistant whole body 316L stainless steel , available in black, golden, white, high polished or brushed
2. Reverse polarity protected
3. 10-30VDC Constant current electronics design ensures consistent light output
4. IP67 rated for interior and exterior installations
5. HIGH QUALITY HEATSINK Heat dissipation through the high quality heatsink increase the life of the LED
6. Anty Rust Stainless Steel Spring
7. Even light across fixture with no shadowing or visible LEDs
8. Available in 3000K, 5000K, bi-color, tri-color, RGB and RGBW
9. Sleek contemporary design for a high-end look
10, Available Color: Single Color, Dual Color(3-core cable), RGB(4-core cable), RGBWW, RGBPW, RGBCW(5-core cable), RGB, RGBW color lamp also can make lamp comes with 2-core cable, then just simply control color by a ON/OFF simple switch , dual color can use switch for dimming. Welcome to contact us to get details information.
Function of Switch Control:
1. Every lamp comes with simple 2-core cable,
2. Single color: switch ON/OFF and dimming,
3. Dual color: switch ON/OFF, switching colors and dimming,
4. RGB color: switch ON/OFF, switching 7 different colors + RGB fade mode,
5. RGBW color: switch ON/OFF, switching 7 different colors +RGB fade mode+white color(2700-7000K for optional).
Advantages of Switch Control:
1. No Controller Required works with standard two position switch,
2. Easy to install, no complicated wiring, and better to protect circuit,
3. Save installation time and costs,
4. Wide voltage 10-30VDC apply to different general boats and yachts,
5. Constant current driver runs each color, make LED brightness is more stable,
Product Specification
Power |
Emitting color |
Chips Brand |
Working Current |
Input voltage |
Wavelength |
Total Lumens |
Beam Angle |
3 |
White |
Epistar |
12VDC |
DC10-30V |
2700-7000K |
300-350 |
120° |
Red |
DC10-30V |
630 |
150-160 |
||||
Green |
DC10-30V |
520 |
200-250 |
||||
Blue |
DC10-30V |
460 |
70-80 |
||||
White+Blue |
DC10-30V/12V/DC24V |
|
150-250 |
||||
RGB |
DC10-30V/12V/DC24V |
|
120-130 |
||||
RGBW |
DC10-30V/12V/DC24V |
|
150-160 |

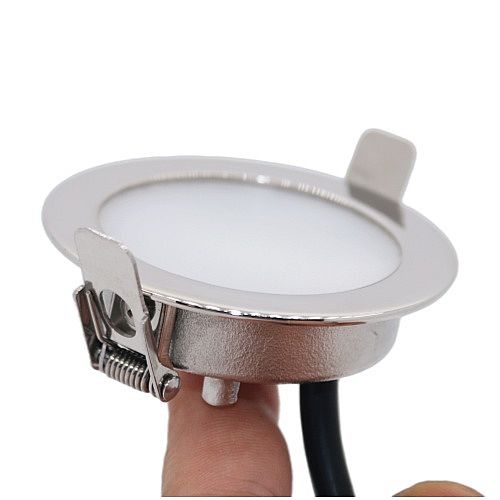

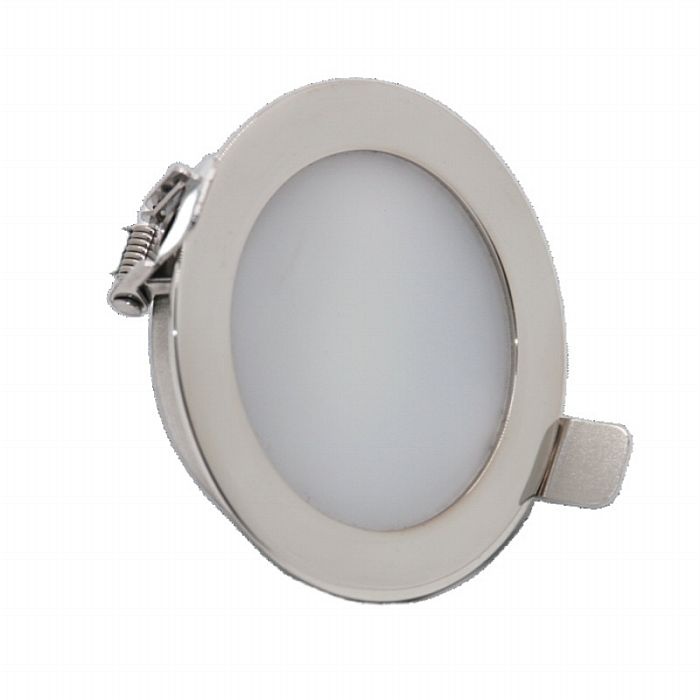

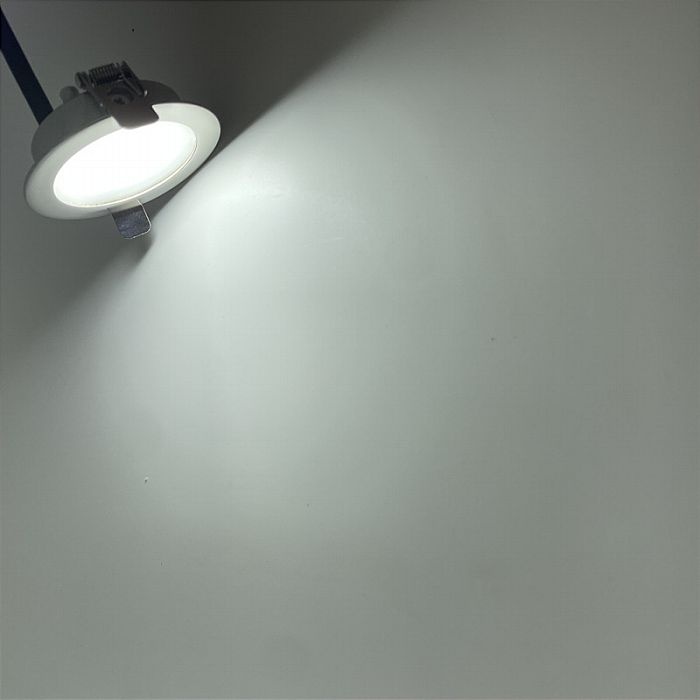

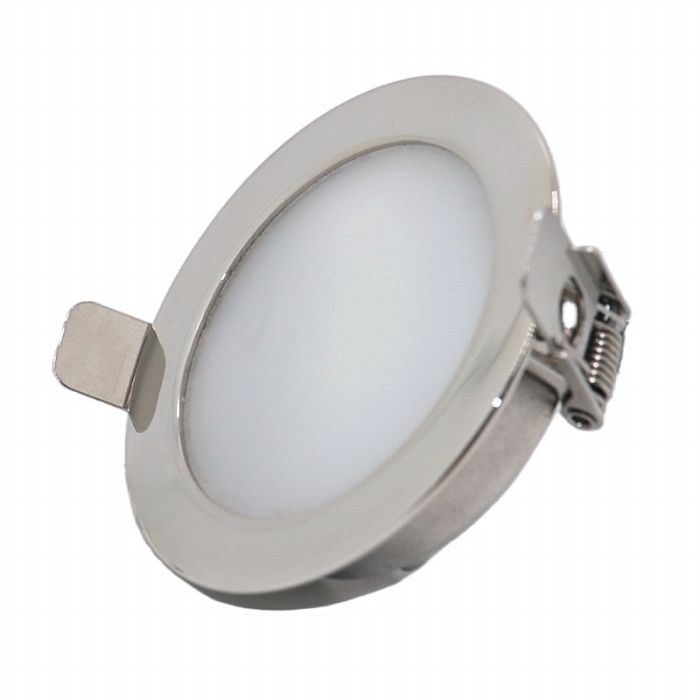

Product Picture

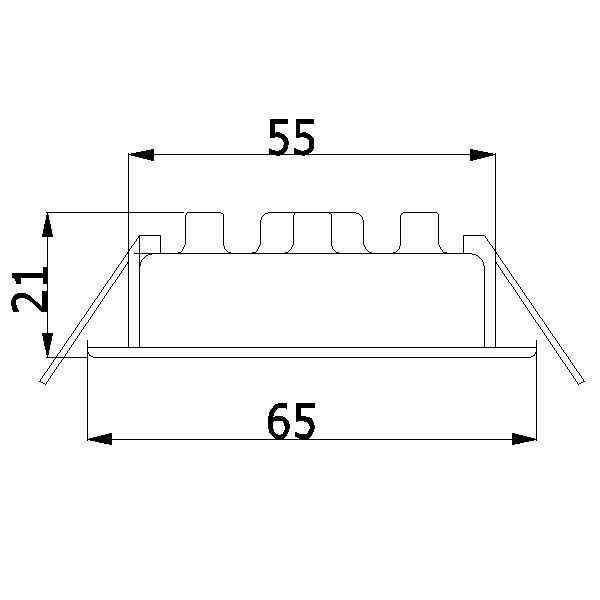

Product Size (in mm)

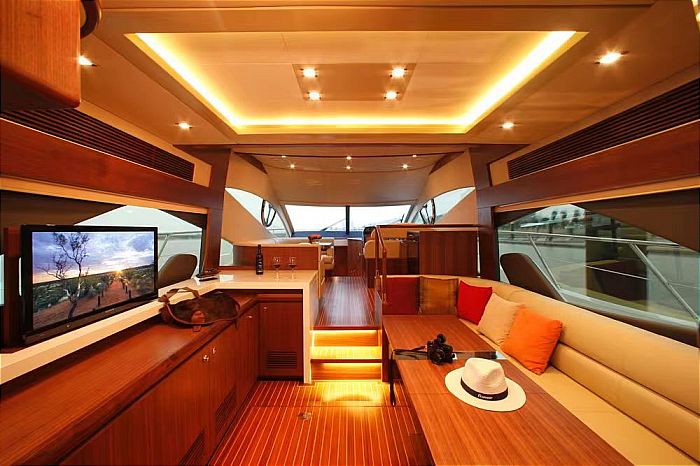

Product Application
