Products >> LED UNDERWATER BOAT LIGHT >> Boat Drain Plug Light

36W RGBW Led Boat Drain Plug Light

Product No.：DPN45-36W
Online Inquiry

Product Name

New Product 36W 1/2" NPT Underwater Marine Yacht LED Boat Drain Plug Light

Product Feature

1.Adopt high power LED which is encapsulated by high efficiency and latest heating conducting structure.

2.The Shell is adopted by the Titanium-aluminium alloy, has excellent corrosion-proof.

3.High luminous efficiency, life-span more than 50000 hours.

4.Wide working current range. Lower electric consumption.

5.Waterproof, Shake-proof, rust-proof, energy-saving, environment-friendly.

6.Power: 36W

7.Waterproof: IP68

8.Supply Voltage : DC10-30V (Single Color); 12VDC/24VDC( Dual Color, RGB, RGBW)

9.LED chips : CREE/Bridgelux

10.Emitting angle of peak : 120°

11.RGB, RGBW color lamp can use external controller, also can make lamp comes with 2-core cable, then turn ON/OFF for switching color. Dual color lamp can use switch for dimming. Contact us to get details information.

Product Specification

Product Name	LED Boat Drain Plug Light
Power	36W
CRI	80
Working Time	>50,000Hrs
Lighting source	LED
Working Voltage	DC 12V / DC24V (dual color, RGB, RGBW); 10-30VDC(single color)
Total Lumens	2000-2100LM
Emitting Color	Cold White
Waterproof Grade	IP68
Model Number	DPN45-36W
Available Color	Daul Color Red Green Blue White RGB RGBW
Housing Material	Aluminium alloy with anti-corrosion surface treatment
Beam Angle	120°
Finished Color	Matt Black
Length of Cable	200CM
Installation	Thru-Hull
Service	OEM ODM
Additional Service	Laser logo with FOC
Product Size	Dia 53 x H32MM
Net Weight	0.2KGS
Gross Weight	0.5KGS
Inner Box Size	16x15x9CM
Carton Packing Size	60x26x17CM (23.62"x10.25"x6.7") 20PCS/CTN

Power	Emitting Color	Input Voltage	Wavelength	Total Lumen (LM)	Beam Angle
36W	White	10-30VDC		2000-2100	90°
	Red	10-30VDC	630nm	900-950	90°
	Green	10-30VDC	520nm	1000-1100	90°
	Blue	10-30VDC	460nm	550-600	90°
	White+Blue	12VDC / 24VDC		900-950	90°
	RGB	12VDC / 24VDC		500-600	90°
	RGBW	12VDC / 24VDC		600-650	90°

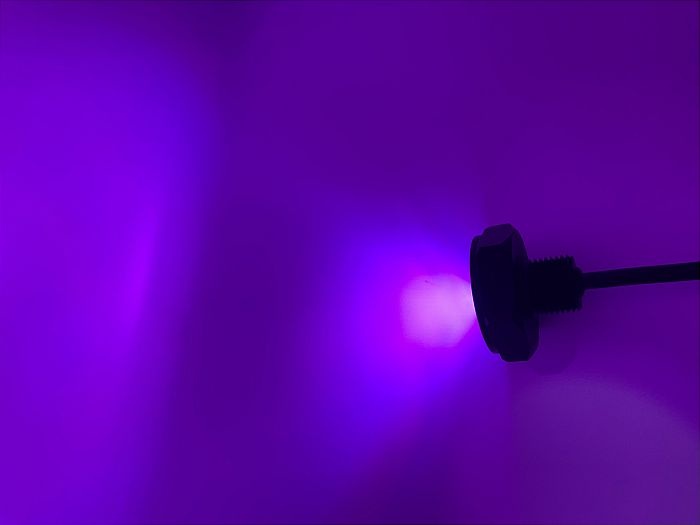

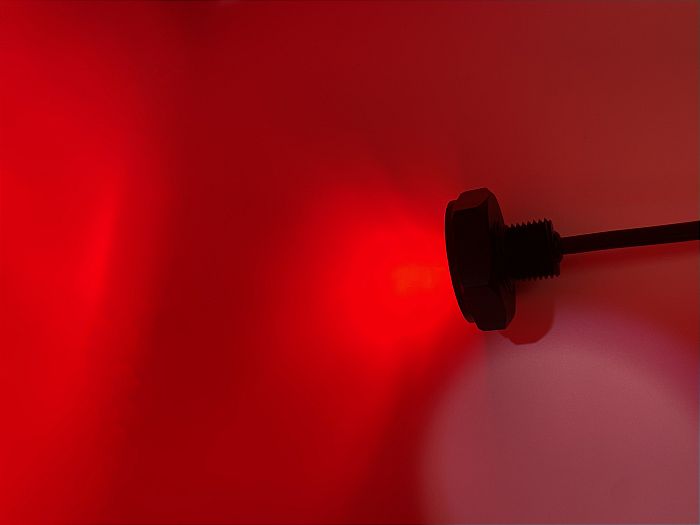

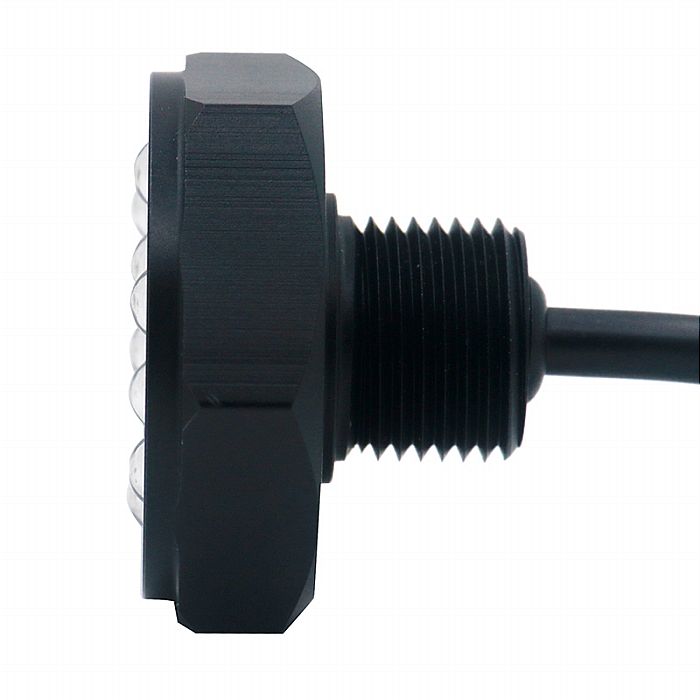

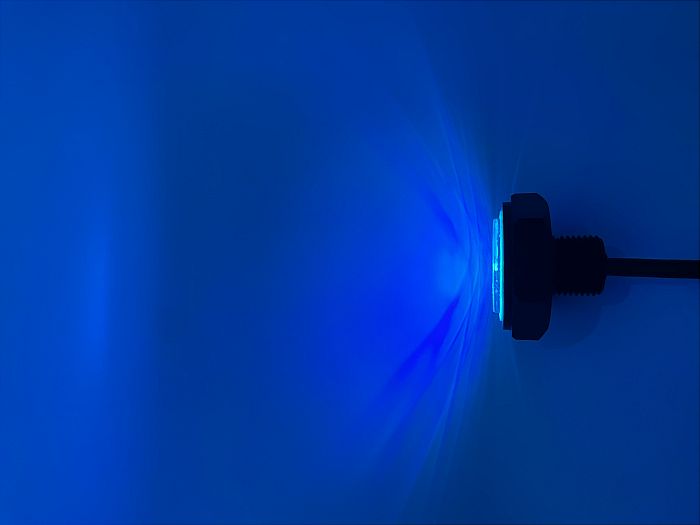

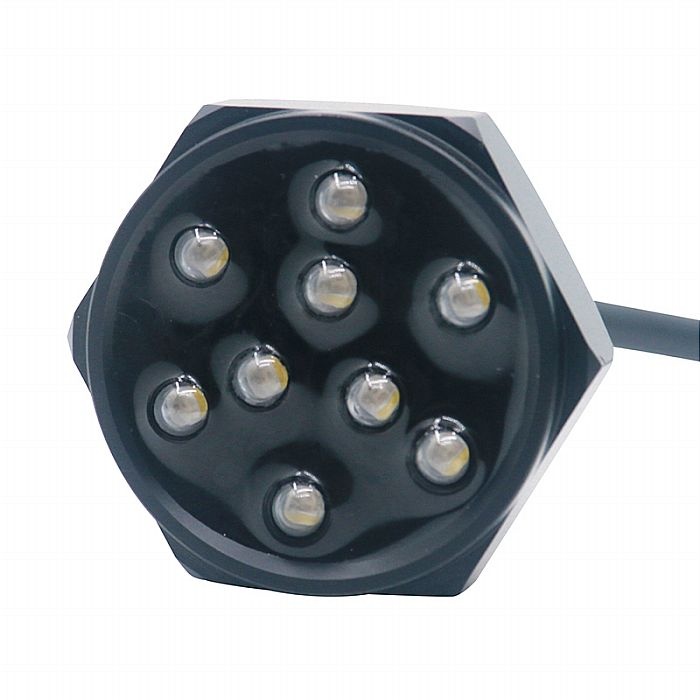

Product Picture

PRODUCT SIZE: (mm)

12 volt input only 1/2″ NPT drain threads (basic pipe thread)The light is removed via a bored hole off center. Simply insert a phillips screw driver through hole and turn. Using 9Cree LED, over 50000 hours lifetime

This drain plug lights provides bright RGB, RGBW, Dual color red, green, blue, or white illumination.
This drain plug lights has overheat and over current protection
