Products >> LED UNDERWATER BOAT LIGHT >> Boat Drain Plug Light

SS316 Housing 27W 1/2" NPT Marine Underwater Transom LED Boat Drain Plug Light

Product No.：DPL45-27W
Online Inquiry

Product Name

SS316 Housing 27W 1/2" NPT Marine Underwater Transom LED Boat Drain Plug Light

Product Feature

1.Adopt high power LED which is encapsulated by high efficiency and latest heating conducting structure.

2.The Shell is adopted by the Titanium-aluminium alloy, has excellent corrosion-proof.

3.High luminous efficiency, life-span more than 50000 hours.

4.Wide working current range. Lower electric consumption.

5.Waterproof, Shake-proof, rust-proof, energy-saving, environment-friendly.

6.Power: 27W

7.Waterproof: IP68

8.Supply Voltage : DC10-30V (Single Color); 12VDC/24VDC( Dual Color, RGB, RGBW)

9.LED chips : CREE/Bridgelux

10.Emitting angle of peak : 120°

11.RGB, RGBW color lamp can use external controller, also can make lamp comes with 2-core cable, then turn ON/OFF for switching color. Dual color lamp can use switch for dimming. Contact us to get details information.

Product Specification

Product Name	LED Boat Drain Plug Light
Power	27W
CRI	80
Working Time	>50,000Hrs
Lighting source	LED
Working Voltage	DC 12V / DC24V (dual color, RGB, RGBW); 10-30VDC(single color)
Total Lumens	1500-1800LM
Emitting Color	Cold White
Waterproof Grade	IP68
Model Number	YF-DPL45-27W
Available Color	Daul Color Red Green Blue White RGB RGBW
Housing Material	316 Stainless Steel
Beam Angle	120°
Finished Color	Original Metal
Length of Cable	200CM
Installation	Thru-Hull
Service	OEM ODM
Additional Service	Laser logo with FOC
Product Size	Dia 53 x H32MM
Net Weight	0.2KGS
Gross Weight	0.5KGS
Inner Box Size	16x15x9CM
Carton Packing Size	60x26x17CM (23.62"x10.25"x6.7") 20PCS/CTN

Power	Emitting Color	Input Voltage	Wavelength	Total Lumen (LM)	Beam Angle
27W	White	10-30VDC	2700-7000K	1800-2000	120°
	Red	10-30VDC	630nm	700-750	120°
	Green	10-30VDC	520nm	1200-1300	120°
	Blue	10-30VDC	460nm	400-450	120°
	White+Blue	12VDC / 24VDC		900-1300	120°
	RGB	12VDC / 24VDC		600-650	120°
	RGBW	12VDC / 24VDC		950-1000	120°

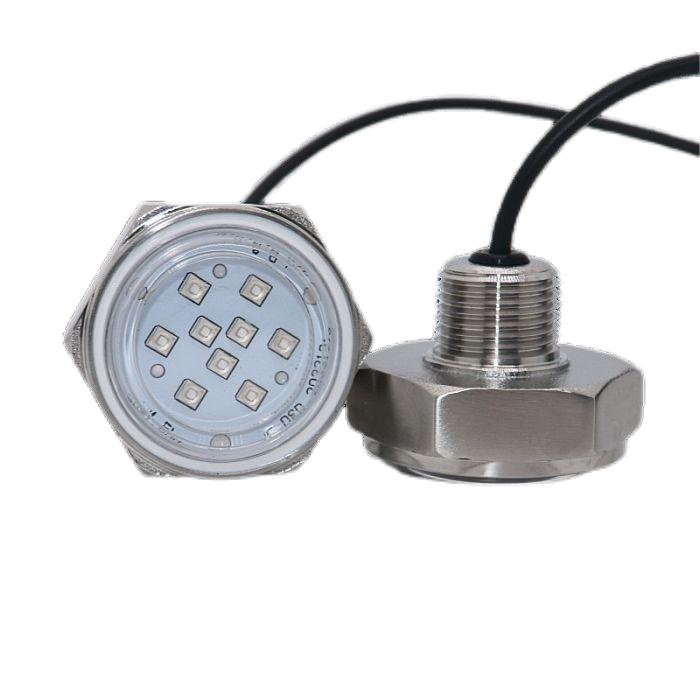

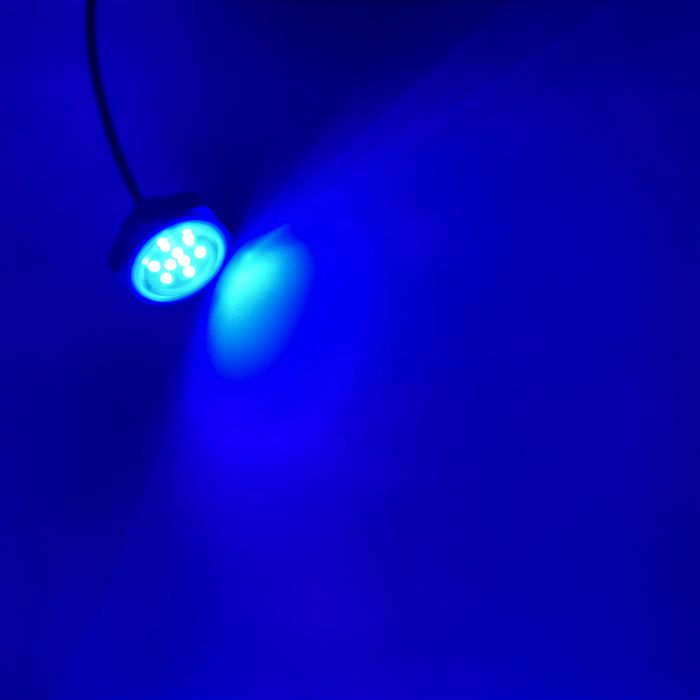

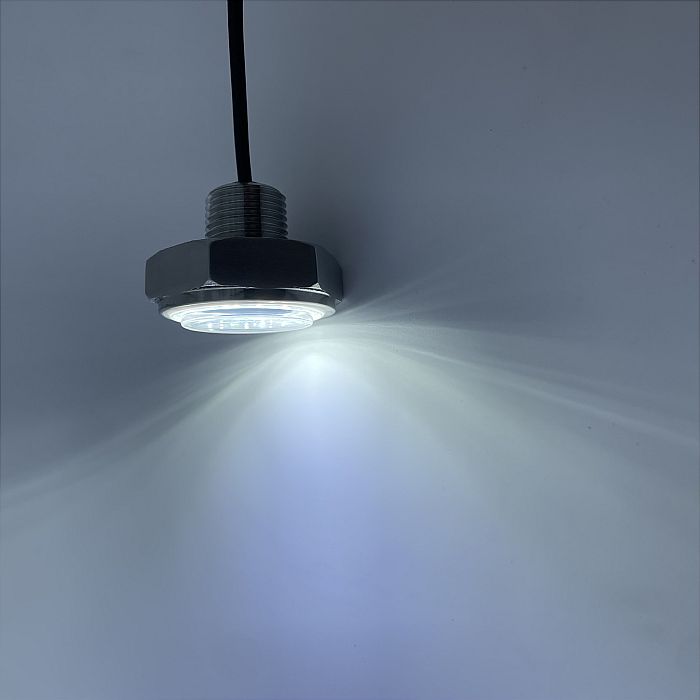

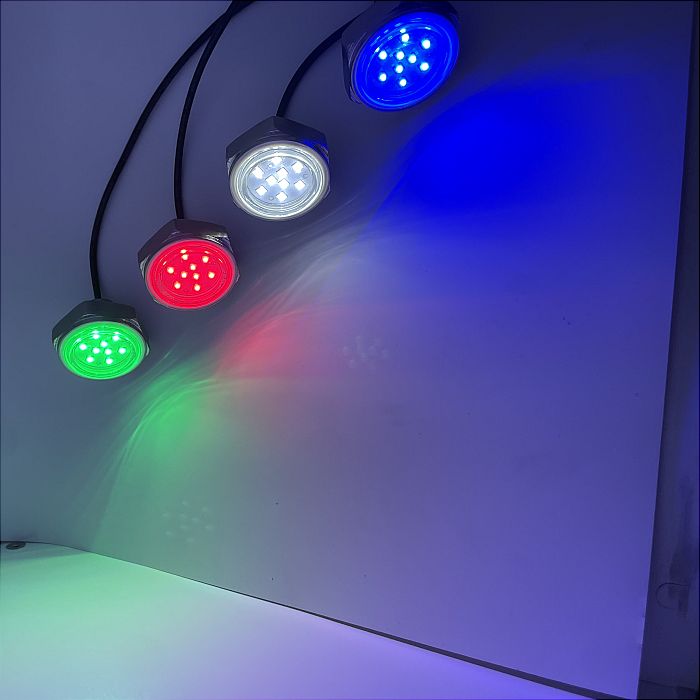

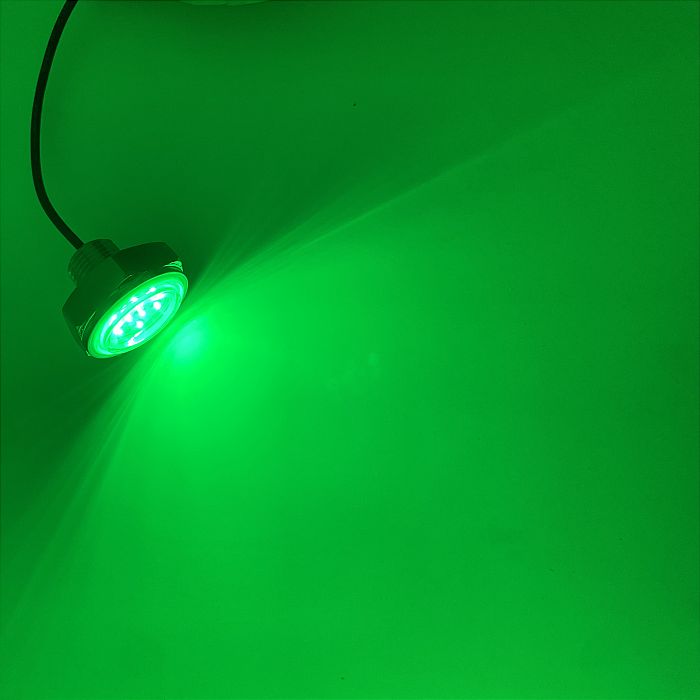

Product Picture

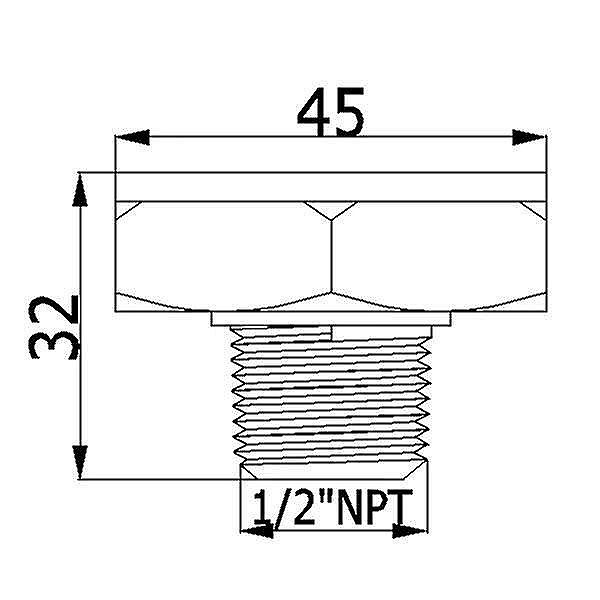

PRODUCT SIZE: (mm)

2.75″ WIDE 12 volt input only 1/2″ NPT drain threads (basic pipe thread)The light is removed via a bored hole off center. Simply insert a phillips screw driver through hole and turn. Using 6 Cree LED, over 50000 hours lifetime

this drain plug lights provides bright red, green, blue, or white illumination. Self-contained circuitry with no external controllers required
This drain plug lights has overheat and over current protection
