Product Name

27W/45W Marine Grade 1/2" NPT Thread RGB Led Drain Plug Light for Boat

Product Feature

1,Adopt high power LED which is encapsulated by high efficiency and latest heating conducting structure.

2,The Shell is adopted by the Titanium-aluminium alloy, has excellent corrosion-proof

3,High luminous efficiency, life-span more than 50000 hours

4, Wide working current range. Lower electric consumption

5,Waterproof, Shake-proof, rust-proof, energy-saving, environment-friendly.



Product Specification

Model Number	YF-DS27
	YF-DS45
Available Power	27W; 45W
Lamp Rated Luminous Efficiency	100lm/w @WHITE COLOR
Driver	Built in driver
Installation way	Thru-Hull
Led Chip Brand	CREE
Lamp Body Material	316L stainless steel
IP Rating	IP68
Beam Angle	90° OR 120°
Input Voltage	DC10-30V (single color)；DC12/DC24V(RGB or RGBW)
Colours Available	White, Warm White, Blue, Green, Red RGB, RGBW
Power Efficiency	>86%
Color Rendering Index (CRI)	Ra > 80
Frequency Range	47-63Hz
Power Factor (PF)	≥0.95
Total Harmonic Distortion (THD)	<15%
Working Lifetime	> 50,000 hours
Working Temperature	-20℃-50℃
Net Weight	0.3kgs
Gross Weight	20KGS/CTN
Product Dimension (mm)	D45*H56MM
Inner Package Size (mm)	6*6*7CM
Outside Package Size (mm)	31*31*15cm     50pcs/ctn

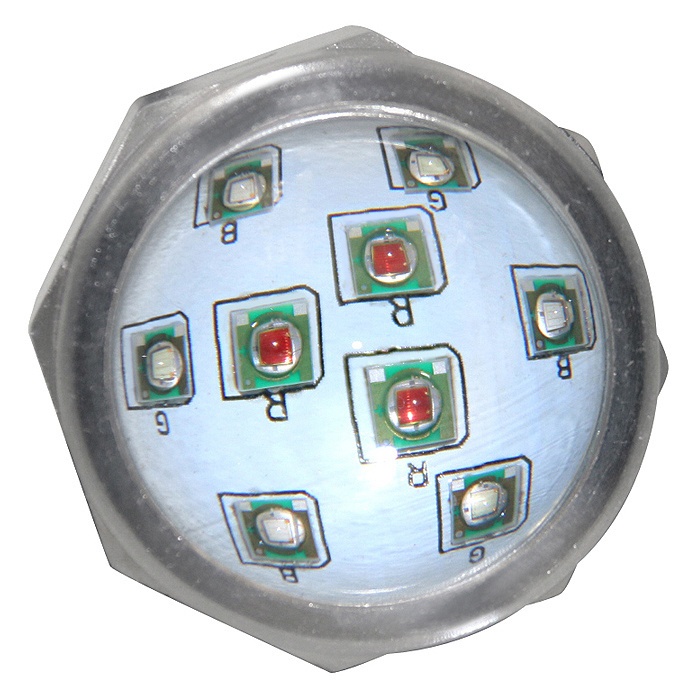

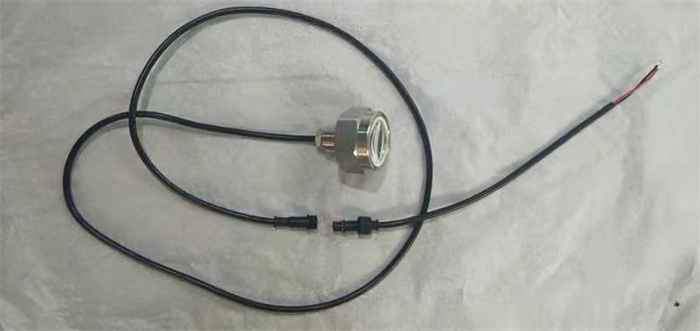

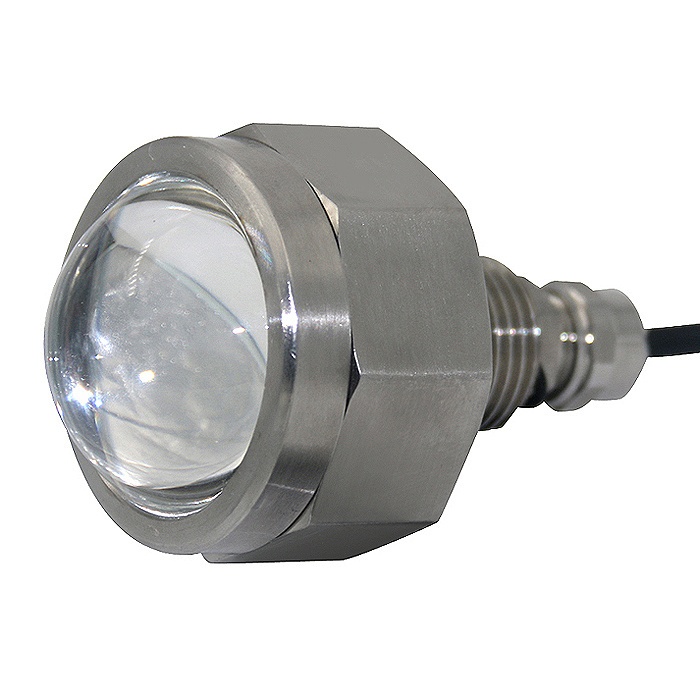

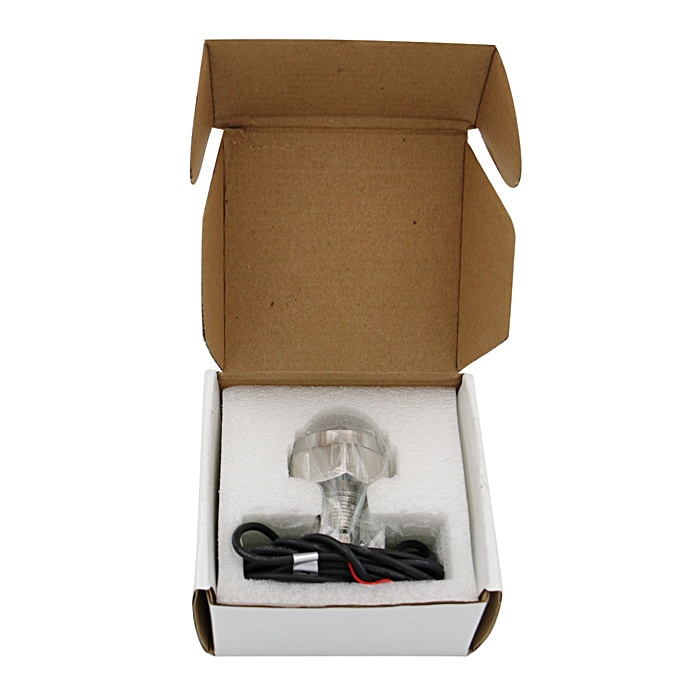

Product Picture

2.75″ WIDE 12 volt input only 1/2″ NPT drain threads (basic pipe thread)The light is removed via a bored hole off center. Simply insert a phillips screw driver through hole and turn. Using 9 Cree LED, over 50000 hours lifetime

this drain plug lights provides bright red, green, blue, or white illumination. Self-contained circuitry with no external controllers required
This drain plug lights has overheat and over current protection



Product Application
