Products >> LED UNDERWATER BOAT LIGHT >> Boat Drain Plug Light

  • 27W Led Drain plug light blue color
  • 27W Led Drain plug light blue color
  • 27W Led Drain plug light blue color
  • 27W Led Drain plug light blue color
27W Led Drain plug light blue color 27W Led Drain plug light blue color 27W Led Drain plug light blue color 27W Led Drain plug light blue color

27W Led Drain plug light blue color

Product Name

27W/45W Marine Grade 1/2" NPT Thread Single color Led Drain Plug Light for Boat


Product Feature


1,Adopt high power LED which is encapsulated by high efficiency and latest heating conducting structure.

2,The Shell is adopted by the Titanium-aluminium alloy, has excellent corrosion-proof

3,High luminous efficiency, life-span more than 50000 hours

4, Wide working current range. Lower electric consumption

5,Waterproof, Shake-proof, rust-proof, energy-saving, environment-friendly.



Product Specification

Model Number YF-DS27
YF-DS45
Available Power 27W; 45W
Lamp Rated Luminous Efficiency  100lm/w @WHITE COLOR
Driver Built in driver
Installation way Thru-Hull
Led Chip Brand CREE
Lamp Body Material 316L stainless steel
IP Rating IP68
Beam Angle 90° OR 120°
Input Voltage DC10-30V (single color)DC12/DC24V(RGB or RGBW)
Colours Available White, Warm White, Blue, Green, Red RGB, RGBW
Power Efficiency >86%
Color Rendering Index (CRI) Ra > 80
Frequency Range 47-63Hz
Power Factor (PF) ≥0.95
Total Harmonic Distortion (THD) <15%
Working Lifetime > 50,000 hours
Working Temperature -20℃-50℃
Net Weight 0.3kgs
Gross Weight 20KGS/CTN

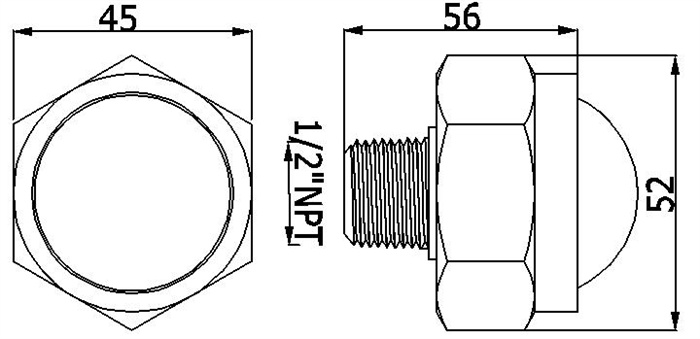

Product Dimension (mm)  D45*H56MM
Inner Package Size (mm) 6*6*7CM
Outside Package Size (mm) 31*31*15cm     50pcs/ctn

Product Picture

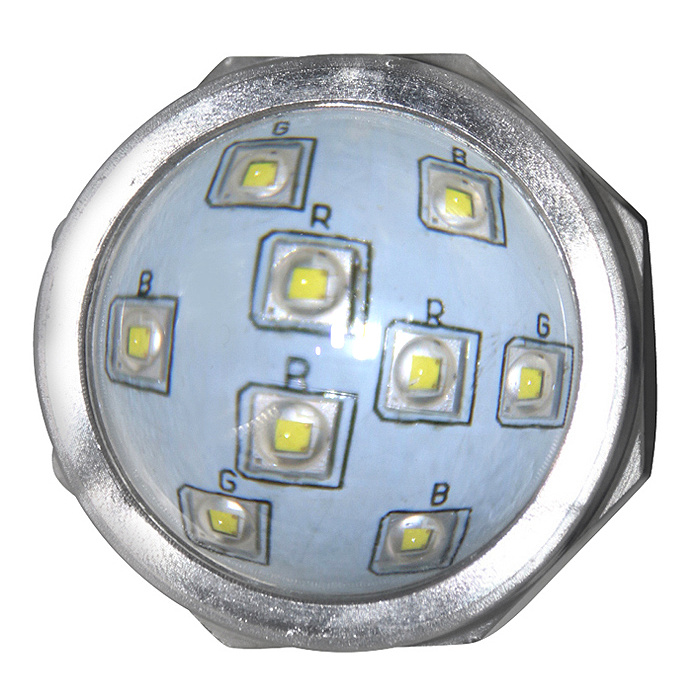

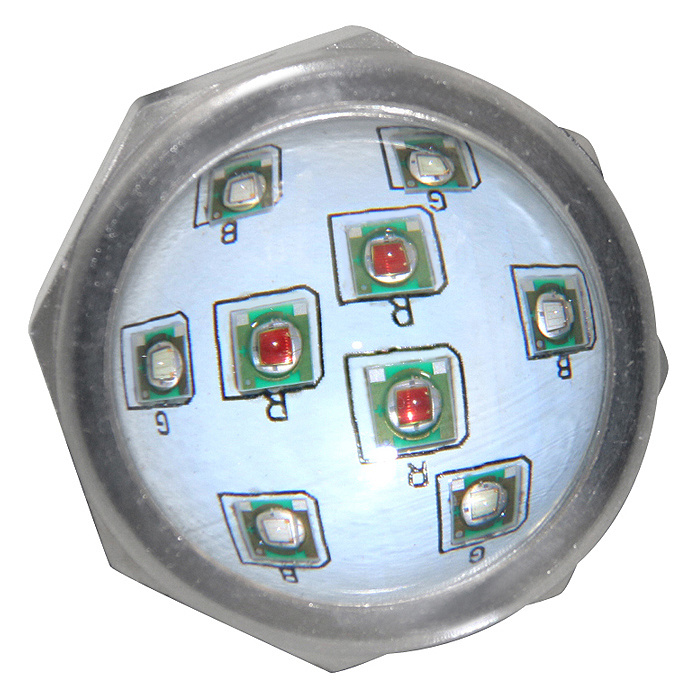

2.75″ WIDE 12 volt input only 1/2″ NPT drain threads (basic pipe thread)The light is removed via a bored hole off center. Simply insert a phillips screw driver through hole and turn. Using 9 Cree LED, over 50000 hours lifetime

this drain plug lights provides bright red, green, blue, or white illumination. Self-contained circuitry with no external controllers required
This drain plug lights has overheat and over current protection



Product Application









Previous Product:24W Led Boat Drain Plug Light Next Product:27W/45W Marine Grade 1/2
