IP65 Outdoor High Power LED Garden Spot Light with Mounting base, Outdoor Landscape Light, Outdoor Garden LED Lighting, Strong Waterproof LED Landscape Light

Main Specification

Housing: 12# Die-casting outdoor powder coated aluminum T=60-80µm

Glass: Tempered glass T=4mm

Lens: Optical lens, efficiency≥85%

Cable gland: IP-68 PG-9 copper and nickel coated

Gasket: Molding shaped silicone double seal

LED: CREE XP-E LED /EDISON LED

PCB: Excellent heat conductivity aluminum, coefficient of Heat Conductivity≥2.0w/mk

Driver: Constant current output

             Single color LED=1-circuit output

             RGB 3in1 LED=3-circuit output

Operating Temperature: -20℃~40℃

LED Colour Temperature: 2700K·3000k / 4000K·6000k

Power cable: H05RN-F2x0.75mm², L=1m (low voltage)

                      H05RN-F3x0.75mm², L=1m (high voltage)

                      H05RN-F4x0.75mm², L=1m (for RGB)

Spike: PVC

Mounting base: Powder coated die-casting aluminum

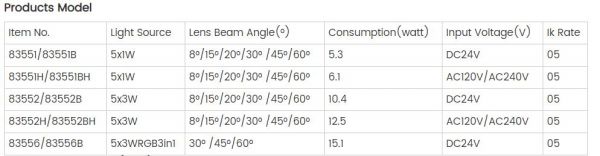

Products Model:







Item No.	Led Source	Lens beam angle(°)	Consumption   (watt)	Input Voltage                (V)
83551/83551B	5x1W	8°/15°/20°/30° /45°/60°	5.3	DC24V
83551H/83551BH	5x1W	8°/15°/20°/30° /45°/60°	6.1	AC120V/AC240V
83552/83552B	5x3W	8°/15°/20°/30° /45°/60°	10.4	DC24V
83552H/83552BH	5x3W	8°/15°/20°/30° /45°/60°	12.5	AC120V/AC240V
83556/83556B	5x3WRGB3in1	30° /45°/60°	15.1	DC24V
83559/83559B	5x4WRGBW 4in1	30° /45°/60°	20	DC24V





Product Application

Landscape illumination,Building lighting,Semi-indoor projecting illumination and other outdoor lighting.
