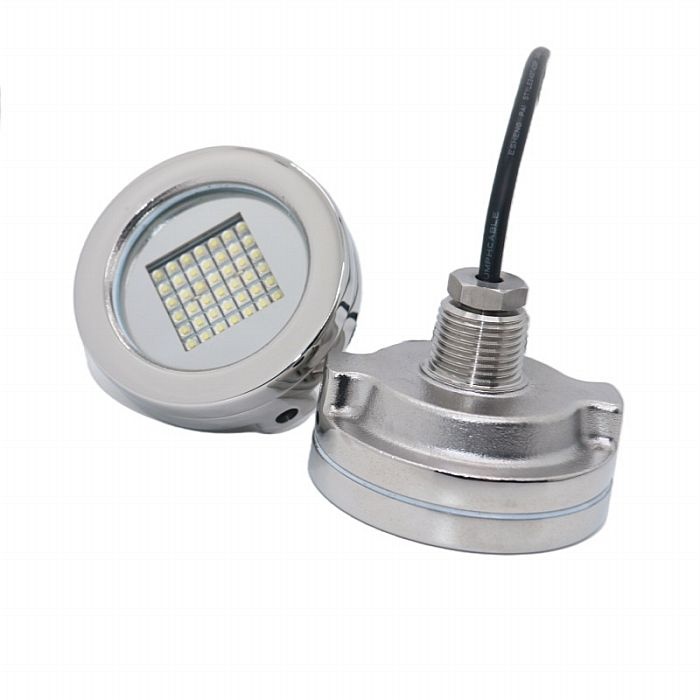

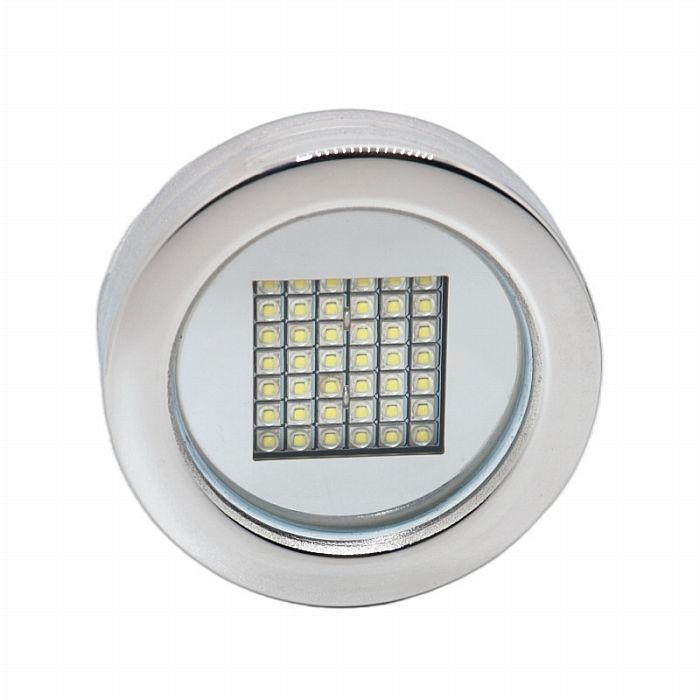

120W 316ss LED Boat Drain Plug Light

Product No.：DPL70-120W
Online Inquiry

Product Name

120W SS316 1/2" NPT Boat Drain Plug Light

Product Feature

1,Adopt high power LED which is encapsulated by high efficiency and latest heating conducting structure.
2,The Shell is adopted by the 316L Stainless Steel with anti-corrosion surface treatment.
3,High luminous efficiency, life-span more than 50000 hours
4, Wide working current range. Lower electric consumption
5,Waterproof, Shake-proof, rust-proof, energy-saving, environment-friendly.
6,Power: 120W
7, Waterproof: IP68
8,Supply Voltage : DC10-30V (Single Color); 12VDC/24VDC( Dual Color, RGB, RGBW)
9, LED chips : C-REE/Bridgelux
10, Emitting angle of peak : 120°
11, Color : White

12, Dual Color, RGB, RGBW color lamp can use external controller, also can make lamp comes with 2-core cable, then turn ON/OFF for switching color(No external controller required). Contact us to get details information.

Product Specification

Model Number	DPL70-120W
Total Power	120W
Total Luminous Flux	12000LM

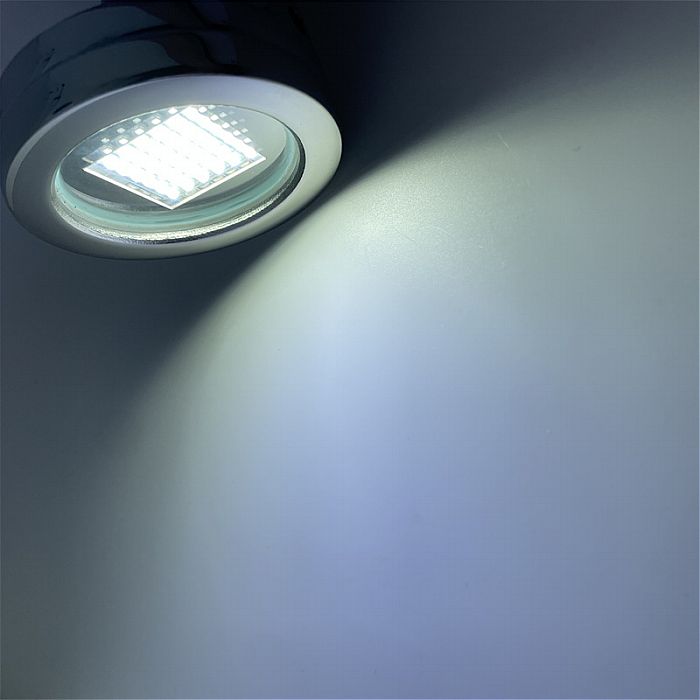

Emitting Color	White
Input Voltage	DC12V
Beam Angle	120°
Power Efficiency	>86%
Color Rendering Index(CRI)	Ra>80
Frequency Range	47-63Hz
Power Factor(PF)	≥0.95
Total Harmonic Distortion(THD)	<15%
Working Lifetime	>50,000Hrs
IP Rating	IP68
Body Material	316L Stainless Steel

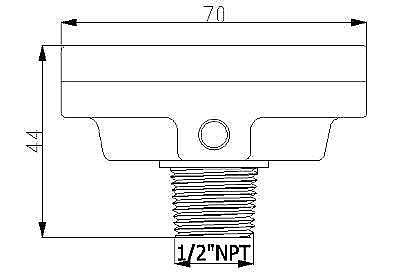

Product Size	Dia 70 x H54.5MM (2.76"x2.17")
Net Weight	0.5KGS (1.1lbs)
Gross Weight	0.6KGS (1.32lbs)
Inner Box Size	16x15x9CM (6.3"X5.9"X3.54")
Carton Packing Size	60x26x17CM (23.62"x10.25"x6.7") 20PCS/CTN

Power (W)	Emitting color	Chips Brand	Working Current	Input voltage	Wavelength (nm)	Total Lumens (LM）	Beam Angle
48x3	White	CREE	12VDC @ 8A	DC10-30V	2700-7000K	12500-13000	120°

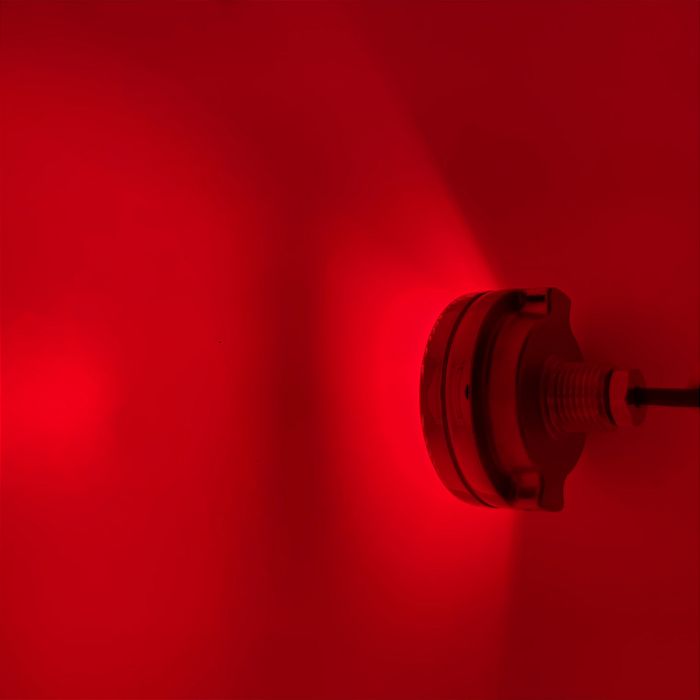

	Red			DC10-30V	630	3500-4000

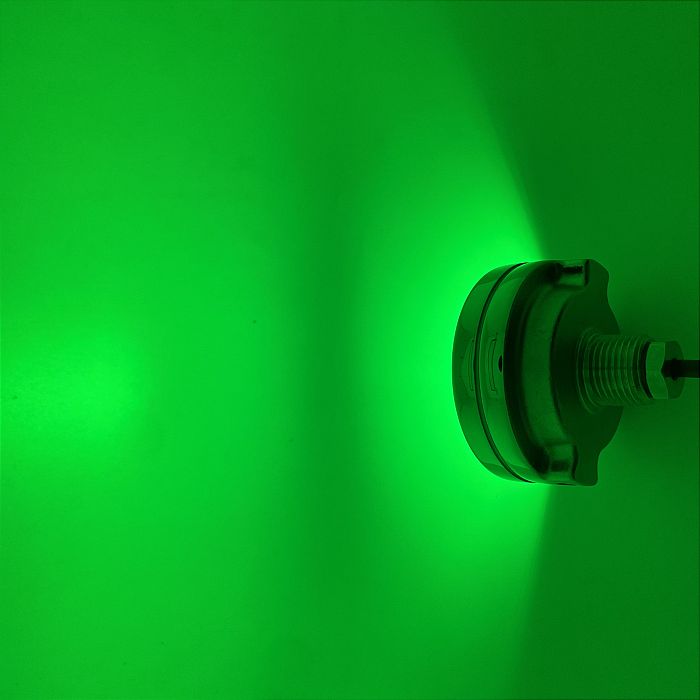

	Green			DC10-30V	520	6500-7000

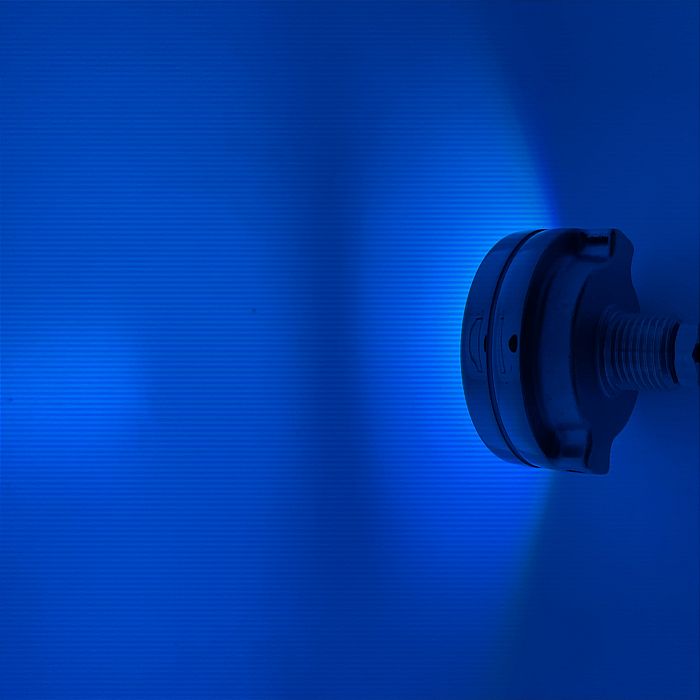

	Blue			DC10-30V	460	2500-3000
	White+Blue			DC10-30V/12V/DC24V		6000-8000
42x3	RGB			DC10-30V/12V/DC24V		5000-6000
48x3	RGBW			DC10-30V/12V/DC24V		6000-6500
