Led Step Light IP68

Product Name


Marine Grade Mini Led Step Light


Product Feature

The LED step Light is made from 316L stainless steel is designed for many applications including yacht, marina walkways, driveways, parks and anywhere an illumination is required· Throws a eyeball design with no upwards glare.



1, Adopt high power LED which is encapsulated by high efficiency and latest heating conducting structure.
2, The Shell is adopted by 316 Stainless Steel has excellent corrosion-proof
3, High luminous efficiency, life-span more than 50000 hours
4, Wide working current range. Lower electric consumption
5, Waterproof, Shake-proof, rust-proof, energy-saving, environment-friendly.
6, LED Power: 1W
7, Waterproof: IP68
8, Supply Voltage : DC12V
9, LED chips : Epistar / CREE
10, Emitting angle of peak : 30°
11, Built-in Driver
12, Available Color: White, Red, Green, Blue





Product Specification

Product Name
LED Step Light
Model Number
YF-STN26-1W
Total LED Power
1W
LED Chip
Bridgelux / CREE
Emitting Color
White/Red/Green/Blue/Warm White
Input Voltage
12VDC
Beam Angle
30°
Power Efficiency
>86%
Color Rendering Index(CRI)
Ra>80
Frequency Range
47-63Hz
Power Factor(PF)
≥0.95
Total Harmonic Distortion(THD)
<15%
Working Lifetime
>50,000Hrs
IP Rating
IP68
Housing Material
316 Stainless Steel
Product Size
D26 x H26 (MM)
Gross Weight
0.1KG

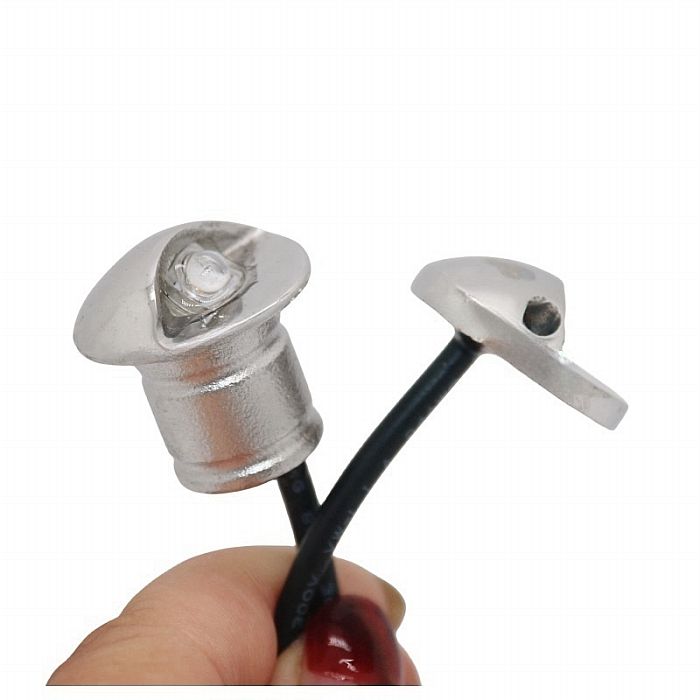

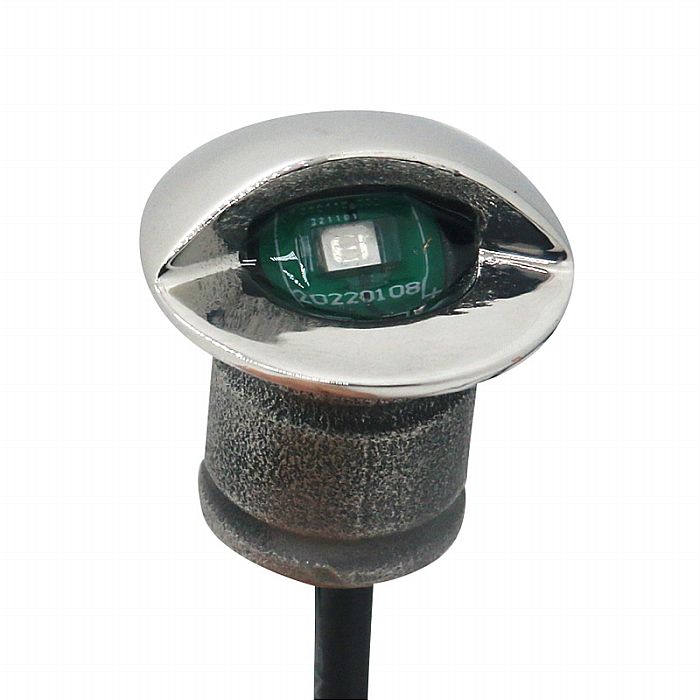

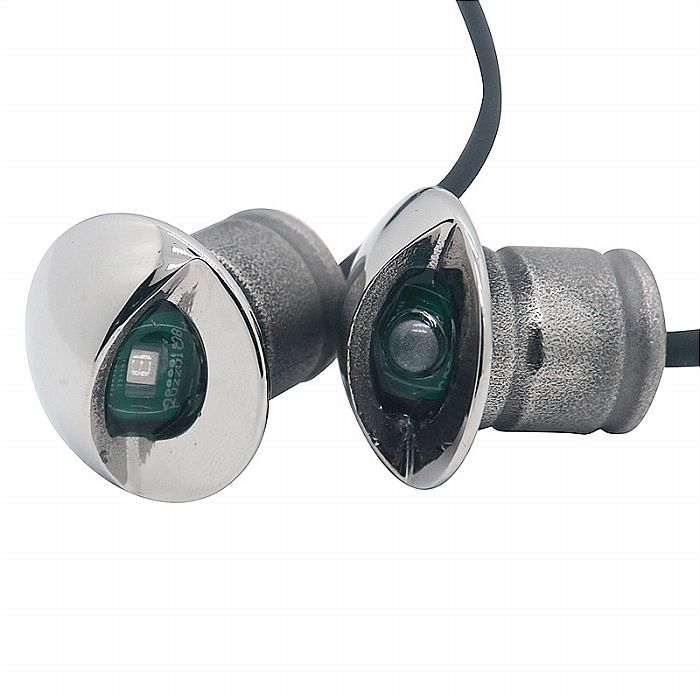

Product Picture

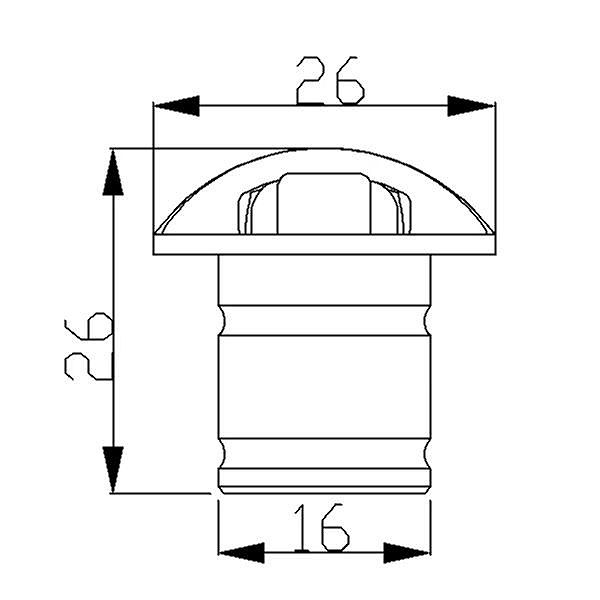

Product size: (mm)

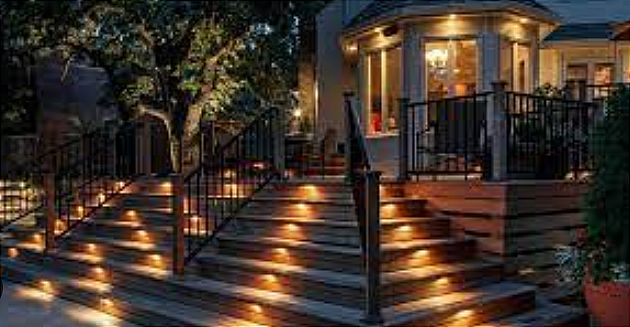

Product Application


Lighting up your step, dock, patio, wall or pathway is what it's all about, Perfect for Yacht, Docks, Pathways or Driveways. Once you see these cast Stainless Steel lights in person, you'll be very impressed with the quality and finish of the product. Use them for wall lights around the perimeter of your yacht, or perhaps along a pathway to accent the edge.  Special eye ball design, anti glare.
