Products >> LED UNDERWATER BOAT LIGHT >> Thru Hull
180w Thru Hull Led Boat Light
- Product No.：YF-120TH180
Product Name
180w Thru Hull Led Marine Light
Thru-Hull model with the world’s smallest hole cut-out for a
thru hull light at only 1” and a 1-inch (25mm) profile head make it
the ideal underwater light for transom mount applications.
Product Feature
1. Made of Bronze and Tempered Glass
2. Waterproof: IP68
3. Low power consumption, high efficiency
4. CE and RoHS approved
5. Every light comes with 2M cable and 1 fast fuse
6. Easy to Install,1” Hole in Hull,Plug & Play.
Product Specification
| Model Number | YF-120TH180 |
| Available Power | 180W |
| Lamp Rated Luminous Efficiency | 110lm/w @WHITE COLOR |
| Driver | External Driver |
| Installation way | Thru Hull |
| Led Chip Brand | Cree/Bridgelux |
| Lamp Body Material | Bronze,Tempered Glass |
| IP Rating | IP68 |
| Beam Angle | 120° |
| Input Voltage | DC10-30V;DC12V;DC24V |
| Colours Available | Warm White, Natural White, Red, Green, Blue, RGB, RGBW |
| Power Efficiency | >86% |
| Color Rendering Index (CRI) | Ra > 80 |
| Frequency Range | 47-63Hz |
| Power Factor (PF) | ≥0.95 |
| Total Harmonic Distortion (THD) | <15% |
| Working Lifetime | > 50,000 hours |
| Working Temperature | -20℃-50℃ |
| Net Weight | 3.5kgs |
| Gross Weight | 4kgs |

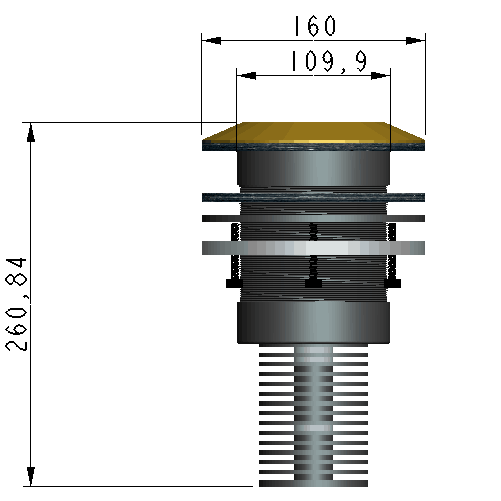

| Product Dimension (mm) | Dia120x160mm |
| Inner Package Size (mm) | 20x15x15CM |
| Outside Package Size (mm) | 60x26x17CM 4pcs/ctn |

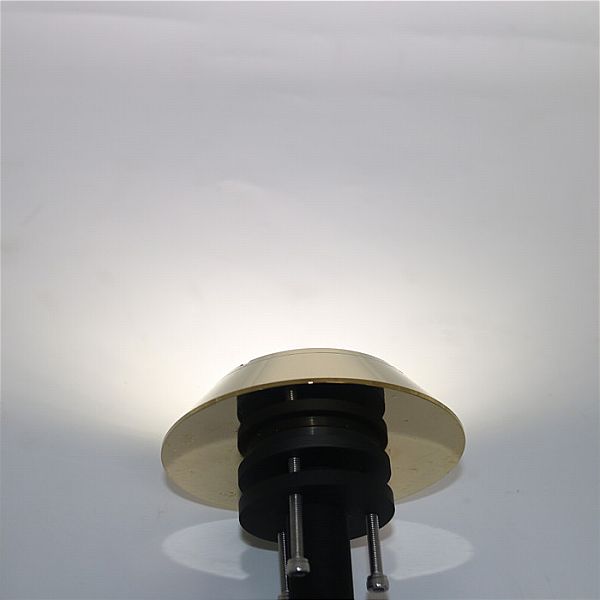

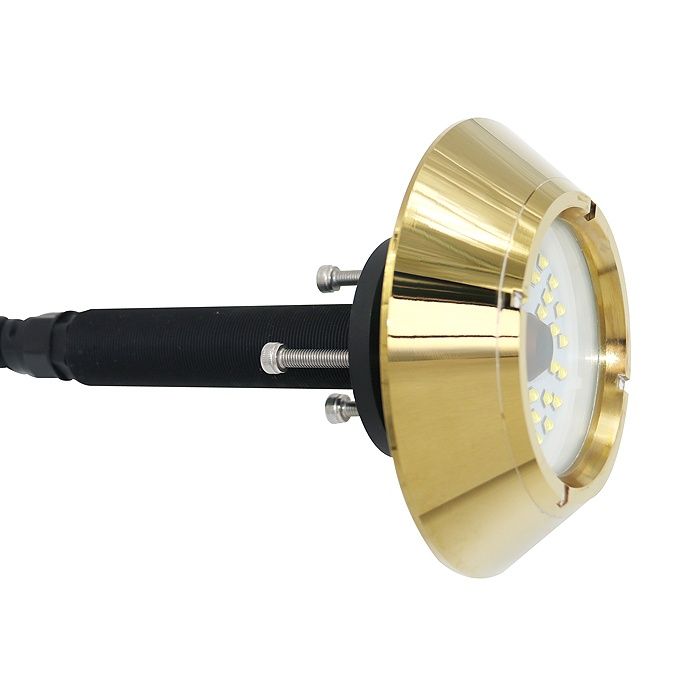

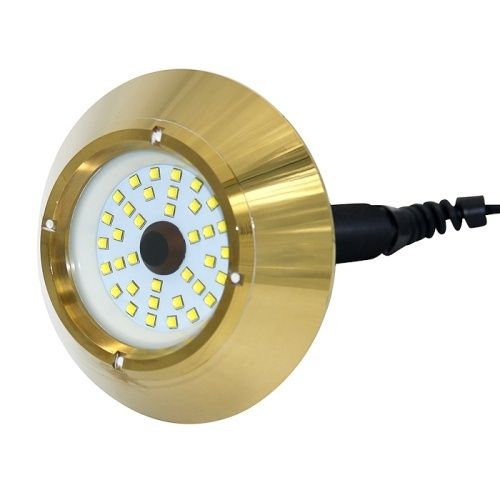

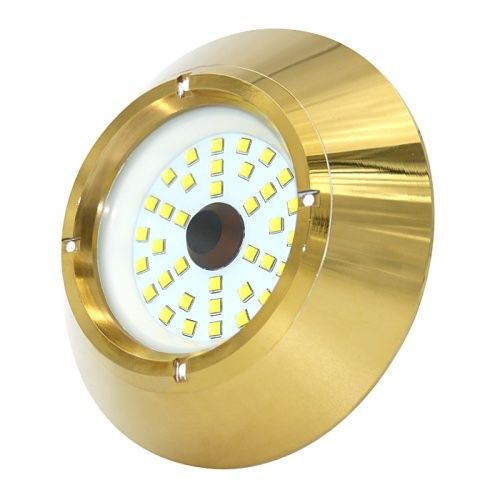

Product Picture

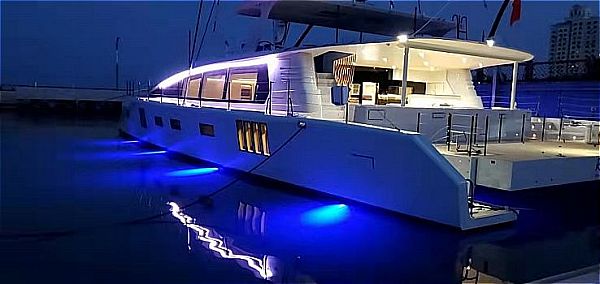

Product Application
Previous Product：Thru Hull Interchangeable LED Underwater Boat Light
Next Product：150w Exchangeable Super Yacht Led Light
